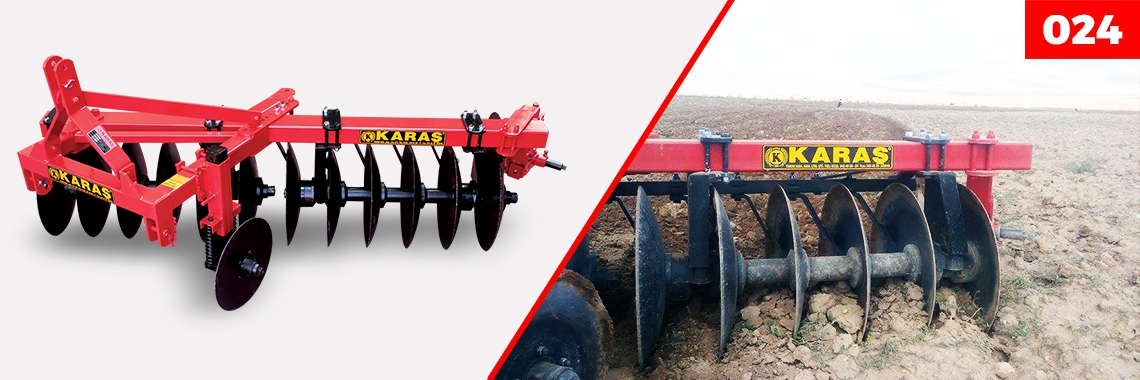

Vanvey Hydraulic (024)

One way is a secondary class soil cultivation machine. They are such tools used after the pulley to prepare a field which was processed with a pulley for planting. To make the field surface eligible for planting by breaking the clod created by the pulley is called duplexing. Mounted one way disc harrow with double balance wheel a soil cultivation machine used for cultivation such as duplexing and triplication on fallowed field for one year after plowing; breaking weeds in the vineyard, garden and field and soil aeration.

Purpose of use of the one way is; To prepare seed bed by breaking the soil sufficiently. To kill weeds in fallow agricultural method and to protect humidity accumulation by preventing the vaporization from the soil. To break the plant residues on the soil surface and provide to mix the organic residues on the upper layer with the soil. To break the duff layer and to accelerate germination by creating a better tempering status through compressing the soil particularly.



SPECIFICATIONS

UNIT OF MEASUREMENT

 VNY-10

VNY- 11

VNY- 12

 VNY-13

 VNY-14

DISC NUMBER

Pcs

10

11

12

13

14

DISC DIAMETER

mm

610x5

610x5

610x5

610x5

610x5

DISTANCE  BETWEEN DISC

cm

22

22

22

22

22

WORKING  WIDTH

cm

197

219

241

263

285

WEIGHT

Kg

672

700

732

762

792

MIN. POWER

HP

50-55

60-65

70-75

80-85

90-100

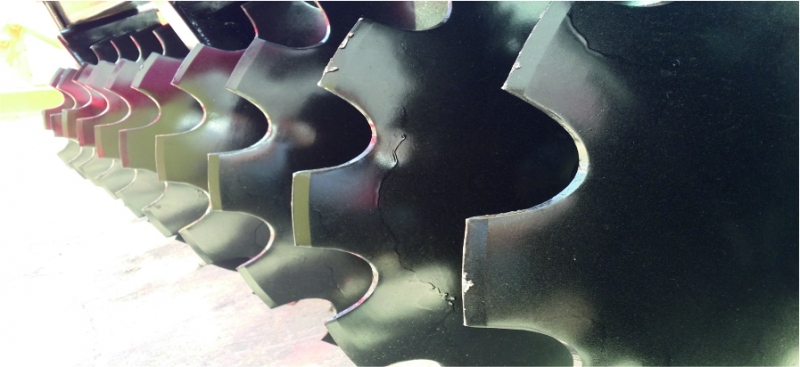

Size and Form of the Disc

Disc may be manufactured with sizes of 460 510 and 560 mm and plane and notched

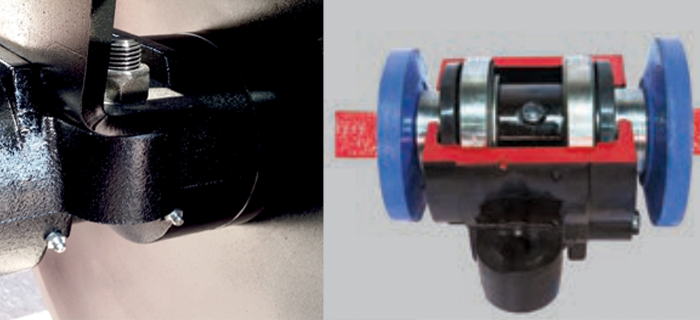

Alternative Bearing

Double ball bearing, double dust seals, ring manufactured from forged steel and long lasting bearing with double grease nipple.

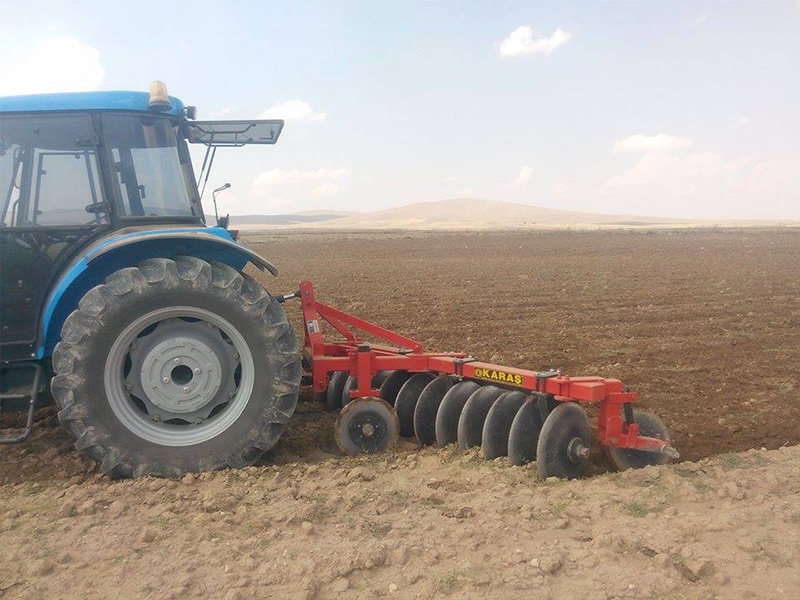

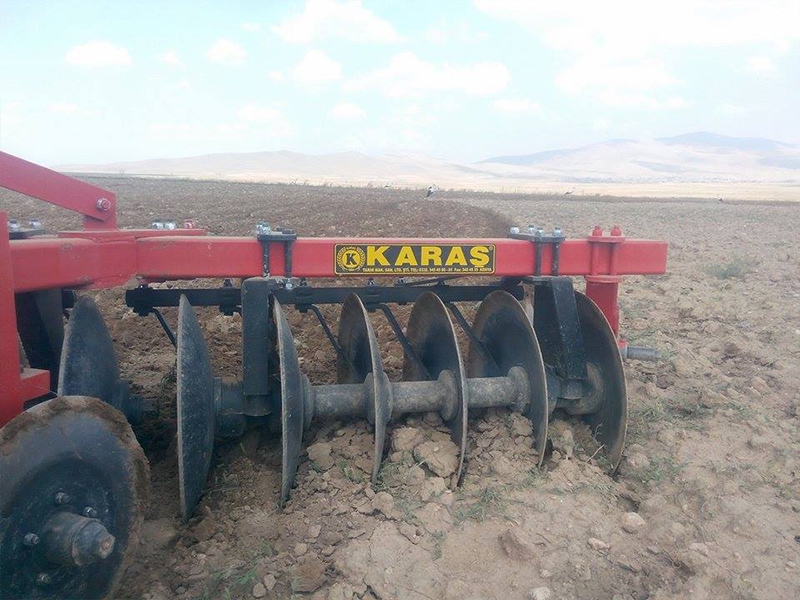

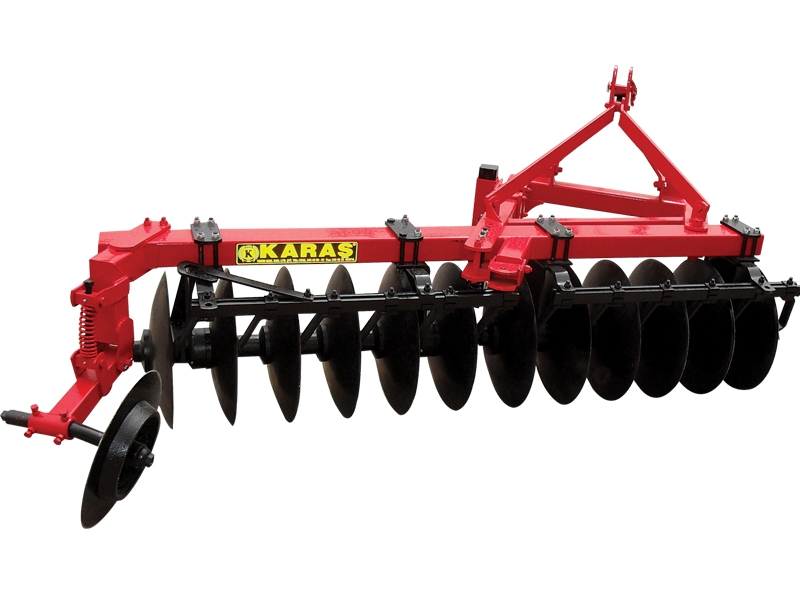

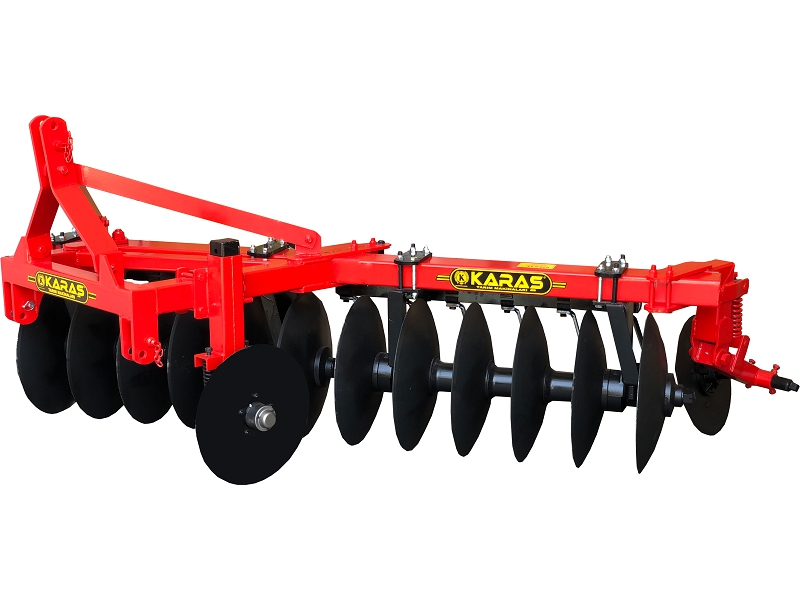

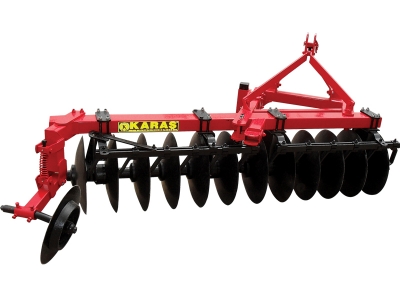

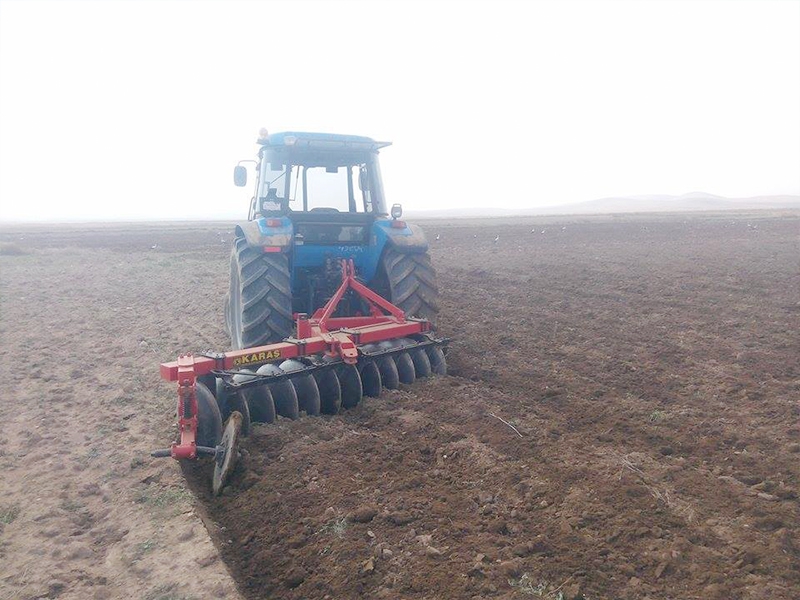

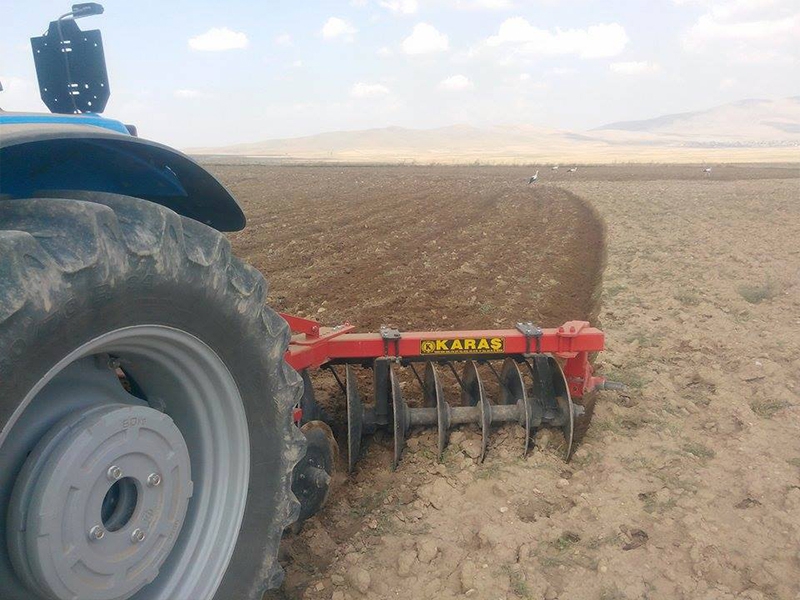

Photo Gallery
