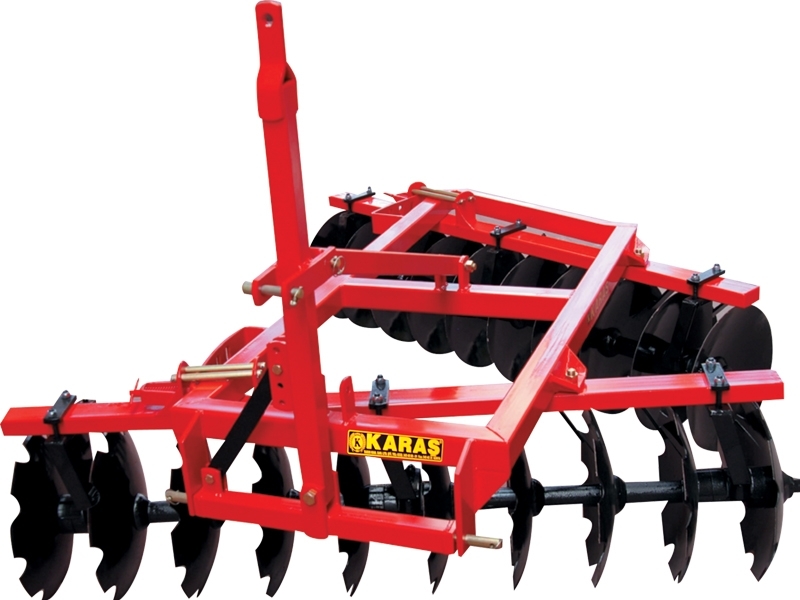

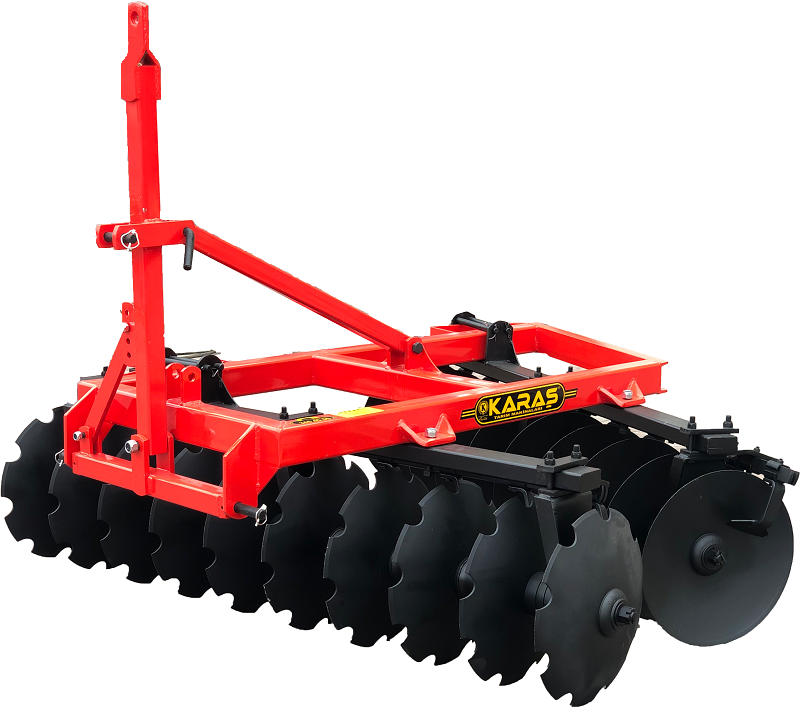

V Type Offset Dıscharrow & Hydraulic Type Mounted (004)

Mounted type offset disc harrow is a machine which is preferred in garden agriculture and small parcels with easy use. Disc direction angles may be adjusted on front and end battery easily. It is used for secondary cultivation, preparation of the seed bed, cultivate spaces between trees in garden agriculture, fighting against the weeds and mixing the fertilizer with the soil. It dissects the scapes and residues left in the field after the harvest and mixes them into the soil. It destroys the clods appeared after operation of tools such as pulley, chisel and cultivator and pulverizes the soil. It is a machine which provides to take organic and inorganic fertilizers under the soil and aeration of the soil which is mixed by this way and water and temperature balance of the soil.



SPECIFICATIONS

UNIT OF MEASUREMENT

SAD-16

SAD-18

SAD-20

SAD-22

SAD-24

DISC NUMBER

Pcs

16

18

20

22

24

DISC DIAMETER

mm

460 X 3,5

510 X 4

460 X 3,5

510 X 4

460 X 3,5

510 X 4

460 X 3,5

510 X 4

460 X 3,5

510 X 4

WORKING WIDTH

mm

185

185

185

225

248

WEIGHT

Kg

450

475

530

600

635

DISTANCE BETWEEN DISC

mm

22

22

22

22

22

NO OF BEDS ON CRANK

Adet/ Pes

4

6

6

6

8

MIN.POWER

HP

40-45

45-50

50

50-55

50-55

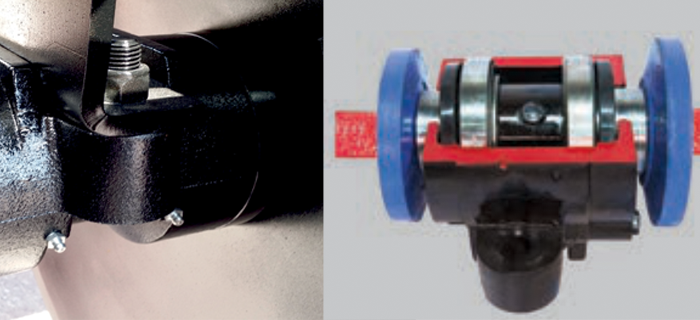

Alternative Bearing

Double ball bearing, double dust seals, ring manufactured from forged steel and long lasting bearing with double grease nipple.

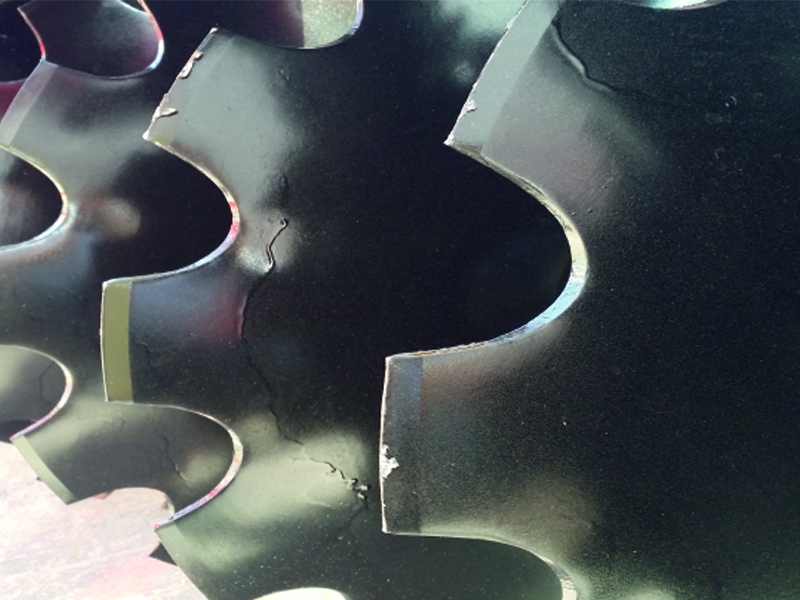

Size and Form of the Disc

Disc may be manufactured with sizes of 460 510 and 560 mm and plane and notched
